Niagara Edge 10

£406.70

The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.

Get help buying, call 01942 732819

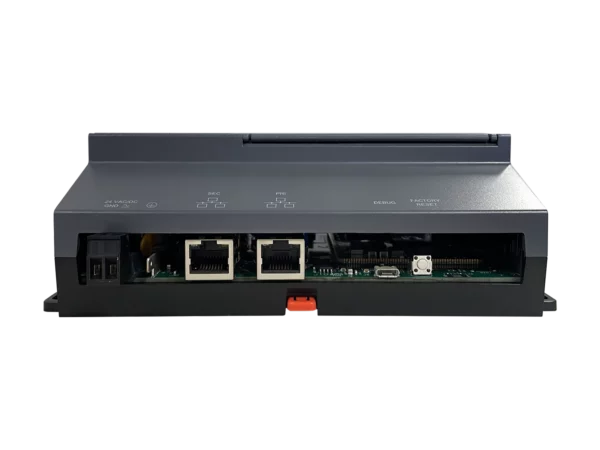

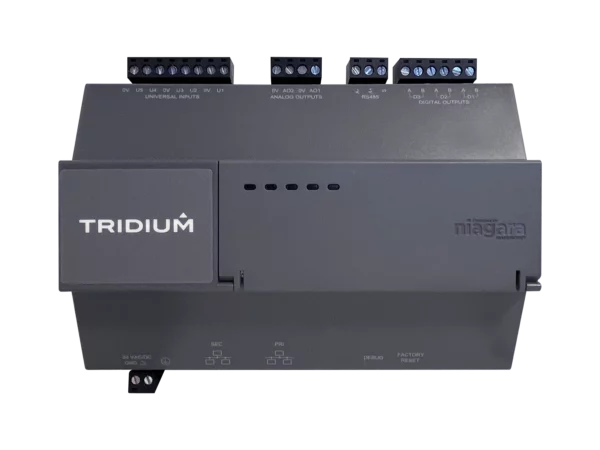

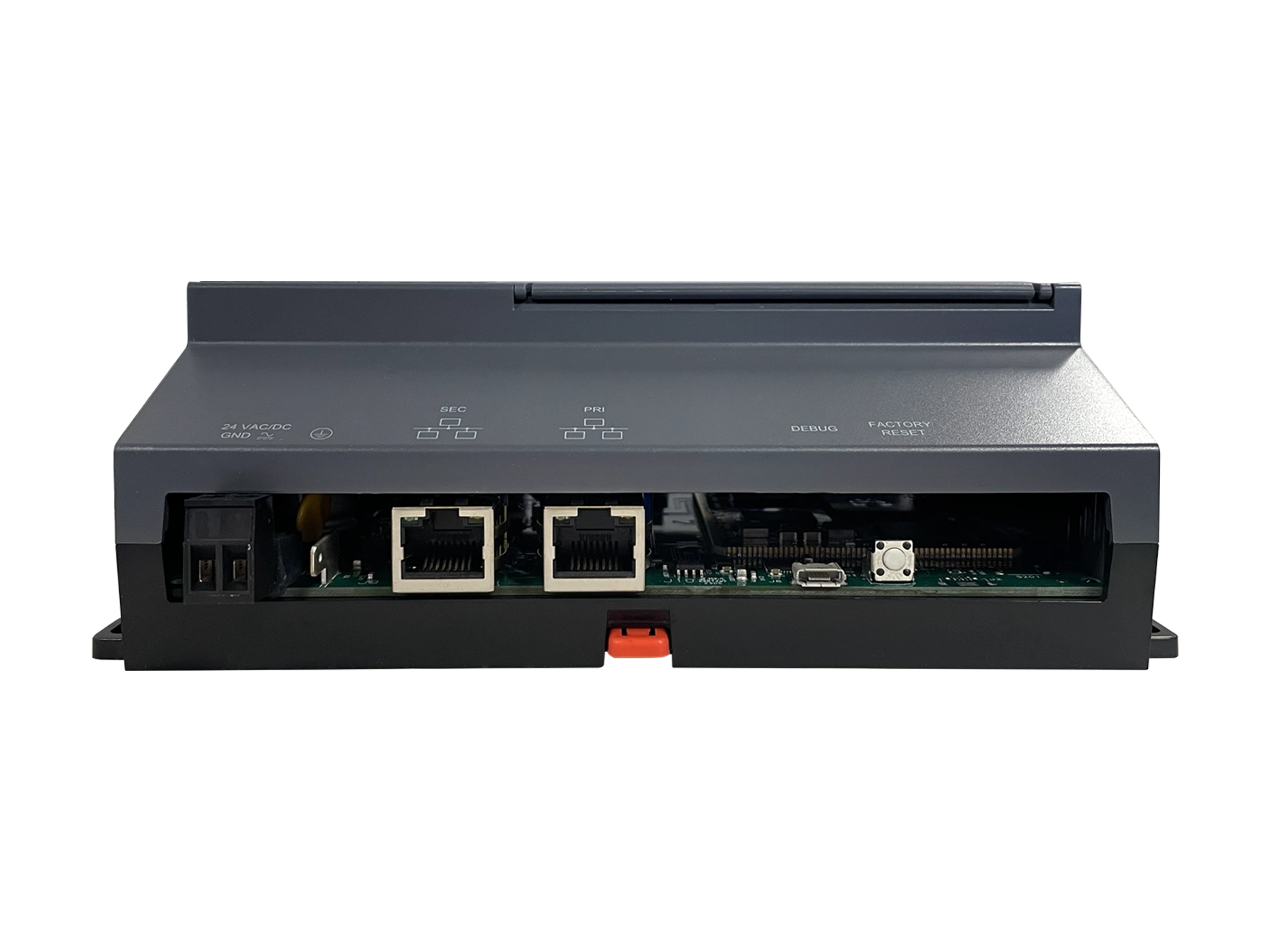

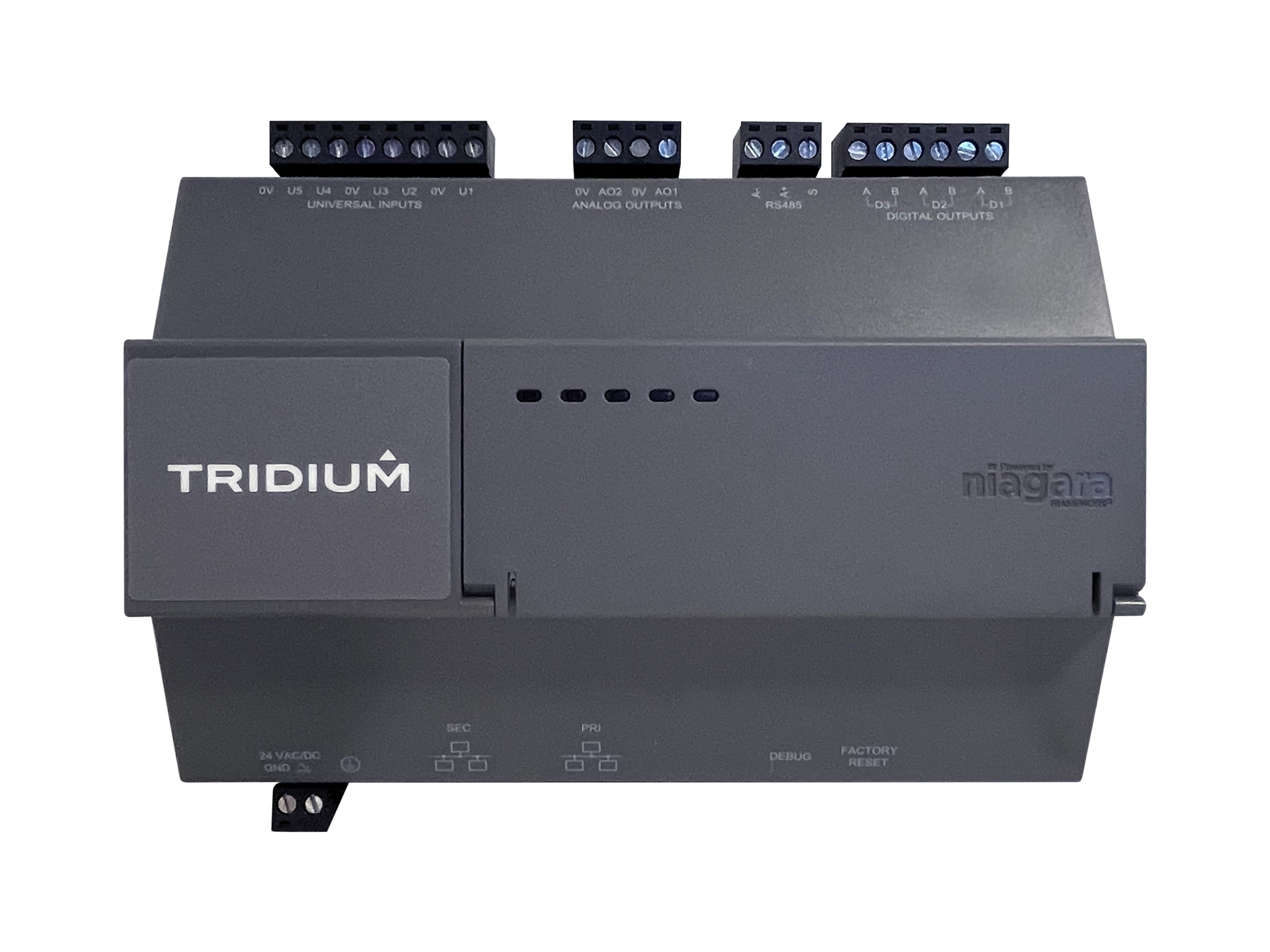

Niagara Edge 10

Niagara Edge 10

Niagara Edge® 10 is a 10-point IP-based field equipment controller that runs Niagara 4 at the edge. By leveraging the Niagara Framework, Niagara Edge 10 offers a single-tool infrastructure, the ability to create smarter, more efficient systems, and world-class security. Like the JACE® 8000, the Edge 10 incorporates internet connectivity, robust web serving capability, advanced integrated control, data logging, alarming, analytics and trending into one package. Here the package is streamlined and cost-effective for common IP control use cases. A Niagara-at-the-Edge approach is ideal for situations where there a limited number of points involved such as in the control of roof-top air handlers, fan-coil units, and other equipment. The Edge 10 can be used to economically address the challenge of extracting operational data from buildings without building management systems, like small retail facilities and k-12 schools. The ACE engine built into the Edge 10 provides a deterministic engine and fast start-up to control time that can be programmed via wire-sheet. You don’t need to learn a new tool to:
  • Quickly build your network: Add many units with ease using tools designed for configuring and managing a field of edge devices in a manner that minimizes overall installation and configuration time.
  • Easily manage and deploy many devices: Edge devices typically have a single purpose, with multiple devices serving the same function. Use Niagara to create application templates and deploy them to multiple devices with specific properties unique to each device.
  •  Keep your network secure: Security is always critical, but implementing it across numerous devices on a network can be tedious. Tridium has built tools that assist systems integrators in provisioning and managing security settings across devices.
Watch the video: Edge Tools – Application Templates & Provisioning

Features

  • Powered by the Niagara Framework®
  • Licensed to 3x Devices & 50x Total Points. The license is a fixed function not expandable
  • Supplied with 10x points of onboard IO, 1x RS-485 serial port, and 2x 10/100 Ethernet ports
  • Supports opt to 2x IO-R-34 or 4x IO-R16 modules
  • The device supports BACnet, Modbus, IO-R and SNMP drivers only
  • NXP iMX6 SoloX2: 800 MHz ARM Cortex-A9/M4
  • 512 MB DDR SDRAM
  • 2GB total eMMC flash storage with user space set at 1GB
  • Powered from 24V AC/DC source
  • 5 Universal inputs: Type 3 (10K) thermistors, 0-100K ohm, 0-10V DC, 0-20mA with an external resistor, Dry Contact
  • 2 Analog outputs: 0-10V DC, 4mA max output current
  • 3 Digital outputs: Triac, 24V AC @.5 amp
  • 2 10/100MB Ethernet ports capable of daisy chaining
  • 1 RS-485 serial port
  • Real-time clock
  • Secure boot
