Tyrrell Products

EO05766

8DI Expansion Module – 8DI Pulse Counting

£100.70

Title Range Discount
Standard price 1 - 25 £100.70
Bulk discount 26 - 10000 £93.00

Join the Tyrrell Products Loyalty Scheme to unlock exclusive deals.

Get help buying, call 01942 732819

8DI Expansion Module

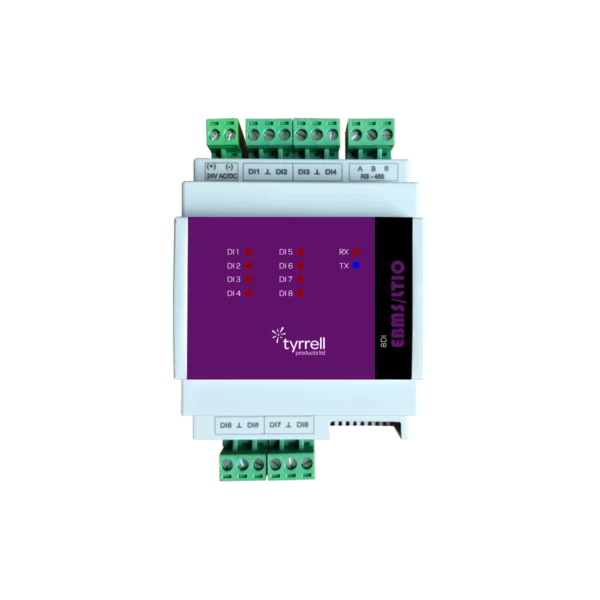

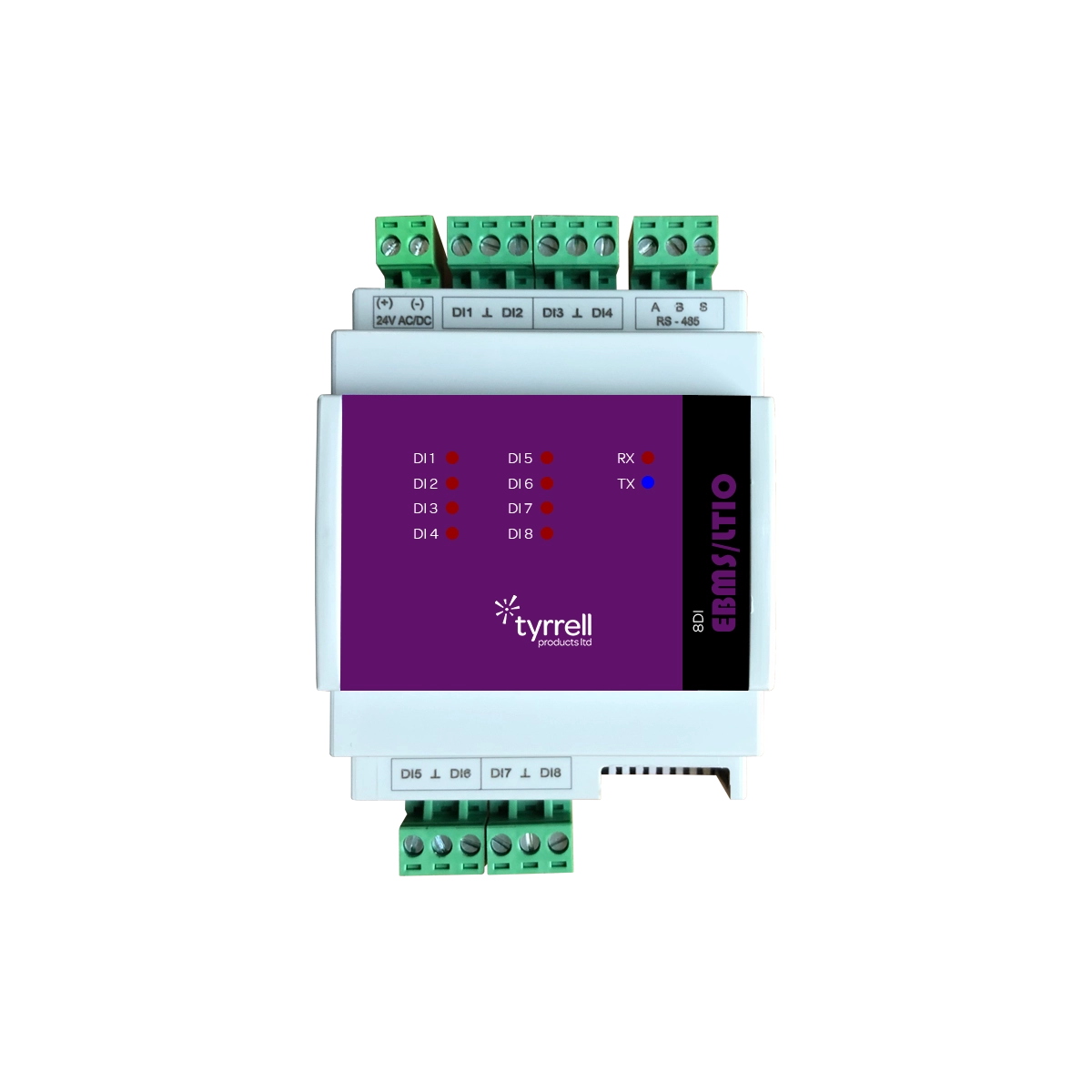

8DI Expansion Module – 8DI Pulse Counting

Introducing the 8DI Expansion Module – 8DI Pulse Counting, an essential addition to any Building Automation System. With 8 digital inputs equipped for pulse counting, this module ensures precise data collection and monitoring. Its user-friendly configuration, coupled with status LEDs for inputs, outputs, and communication, guarantees ease of use and quick troubleshooting. Featuring RS-485 connection as a Modbus RTU slave, with the option for IP connection for Modbus TCP, this module offers versatile connectivity options. Configuration parameters such as slave ID and baud-rate are conveniently set via DIP switches. Plus, with counter values stored in permanent memory and the ability to retain the last value during a power failure, data integrity is maintained at all times. Upgrade your automation system effortlessly with the reliability and flexibility of the 8DI Expansion Module.

Features

Expansion Module for Building Automation Systems
• 8 Digital Inputs (Pulse Counter)
• User Friendly Configuration
• Status LEDs for all Inputs, Outputs and Communication
• RS-485 Connection as Modbus RTU Slave
• Option for IP connection for Modbus TCP
• Slave ID and Baud-rate Configured with DIP Switches
• Counter Value Stored in Permanent Memory
• Last Value Held in Memory During Power Failure

Datasheet
