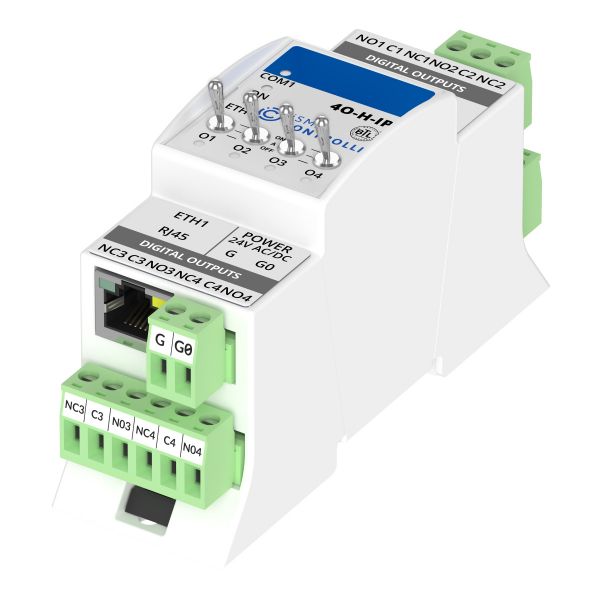

4O-H IP (BACnet IP / Modbus TCP)

Multi-protocol I/O Module in a Compact Size with High Power Relays
Powerful I/O module that works as a remote I/O over IP with open protocols, BACnet IP and Modbus TCP/IP. A compact size and ease of installation allow the module to be fitted even into limited space installations. The module is equipped with 8 A relay outputs.

4 Digital Outputs
Digital outputs equipped with NC/NO 8 A relays allow for a direct control of high power loads.

Manual Override Switches
Each output can be manually overridden using a dedicated hand operating switch.

Modbus TCP/IP to Modbus RTU/ASCII Gateway
Built-in Modbus gateway on the COM1 port enables integration of up to 128 Modbus slave devices to the IP layer.

Simplified Configuration and Commissioning Process
The module allows for seamless configuration over BACnet, Modbus, or dedicated free of charge tool. The ability to be powered from a USB port facilitates local testing and a straightforward updating process.


Hardware Specification
Ethernet interface
RS485 interface
mini USB type B interface
Status LED indicators
DIN rail mounted

4 Digital Outputs (DO)
NC/NO relay output
Resistive load max. 8 A @ 230 V AC / 30 V DC
Inductive load max. 360 VA @ 230 V AC / 90 W @ 30 V DC

Modbus TCP/IP
Modbus TCP/IP to Modbus RTU/ASCII gateway
Free software iSMA Configurator
Built-in web server
Dedicated Niagara Framework modules

Power Supply
24 V DC ± 20%
24 V AC ± 20%
