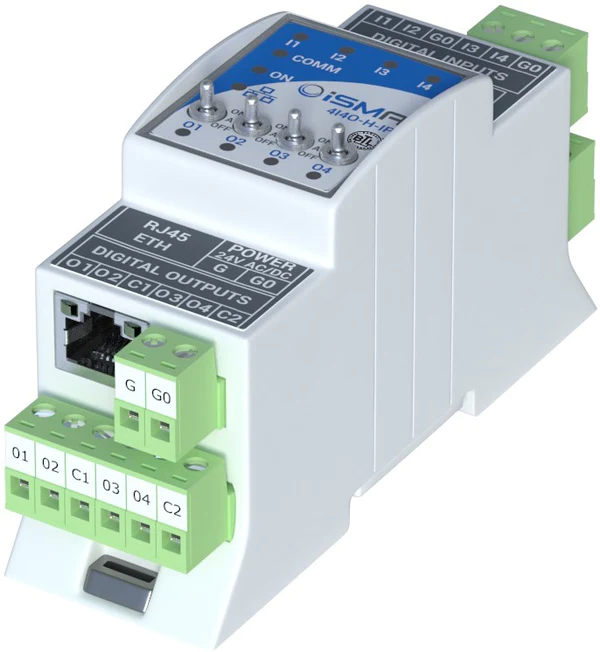

4I-4O-H IP (BACnet IP / Modbus TCP)

4I-4O-H IP (BACnet IP / Modbus TCP)

Multi-protocol I/O Module in a Compact Size with Built-in Light Applications
Powerful I/O module that works as a remote I/O over IP with open protocols, BACnet IP and Modbus TCP/IP. A compact size and ease of installation allow the module to be fitted even into limited space installations. The module is equipped with light applications that control the output based on the input measurement.

4 Digital Inputs
Dry contact inputs were made for monitoring. 100 Hz fast pulse counter with override function saves the real-time values to the EEPROM memory.

4 Digital Outputs
Digital outputs equipped with normally open 3 A relays allow for a direct control of equipment.

Manual Override Switches
Each output can be manually overridden using a dedicated hand operating switch.

Built-in Light Applications
Light control configurable algorithms make the module applicable as a standalone controller.

Modbus TCP/IP to Modbus RTU/ASCII Gateway
Built-in Modbus gateway on the COM1 port enables integration of up to 128 Modbus slave devices to the IP layer.

Simplified Configuration and Commissioning Process
The module allows for seamless configuration over BACnet, Modbus, built-in web server, or dedicated free of charge tool. The ability to be powered from a USB port facilitates local testing and a straightforward updating process.


Technical Data
Hardware Specification
Ethernet interface
RS485 interface
mini USB type B interface
Status LED indicators
DIN rail mounted
8 I/Os onboard

4 Digital Inputs (DI)
Dry contact inputs
Fast pulse counter up to 100 Hz saved in the EEPROM memory

4 Digital Outputs (DO) / NO relay output
Resistive load max 3A@230VAC / 30 V DC / Inductive load max. 75VA@230 VAC / 30 W@30VDC

Modbus TCP/IP
Modbus TCP/IP to Modbus RTU/ASCII Gateway
Free software iSMA Configurator
Built-in web server
Dedicated Niagara Framework modules

Power Supply
24 V DC ± 20%
24 V AC ± 20%
