JACE 9000

£953.10£5,435.00

Join the Tyrrell Products Loyalty Scheme to unlock exclusive deals.

Get help buying, call 01942 732819

Description

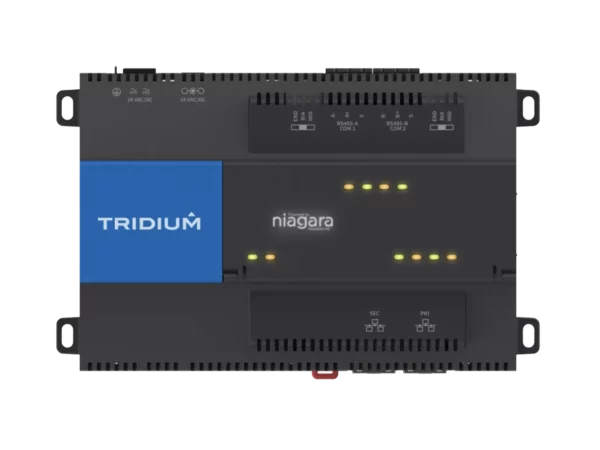

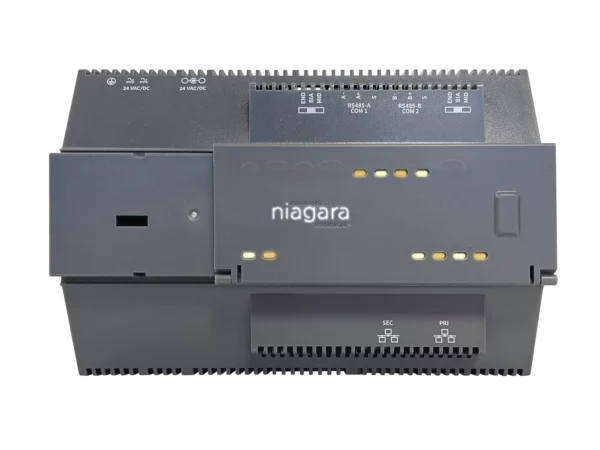

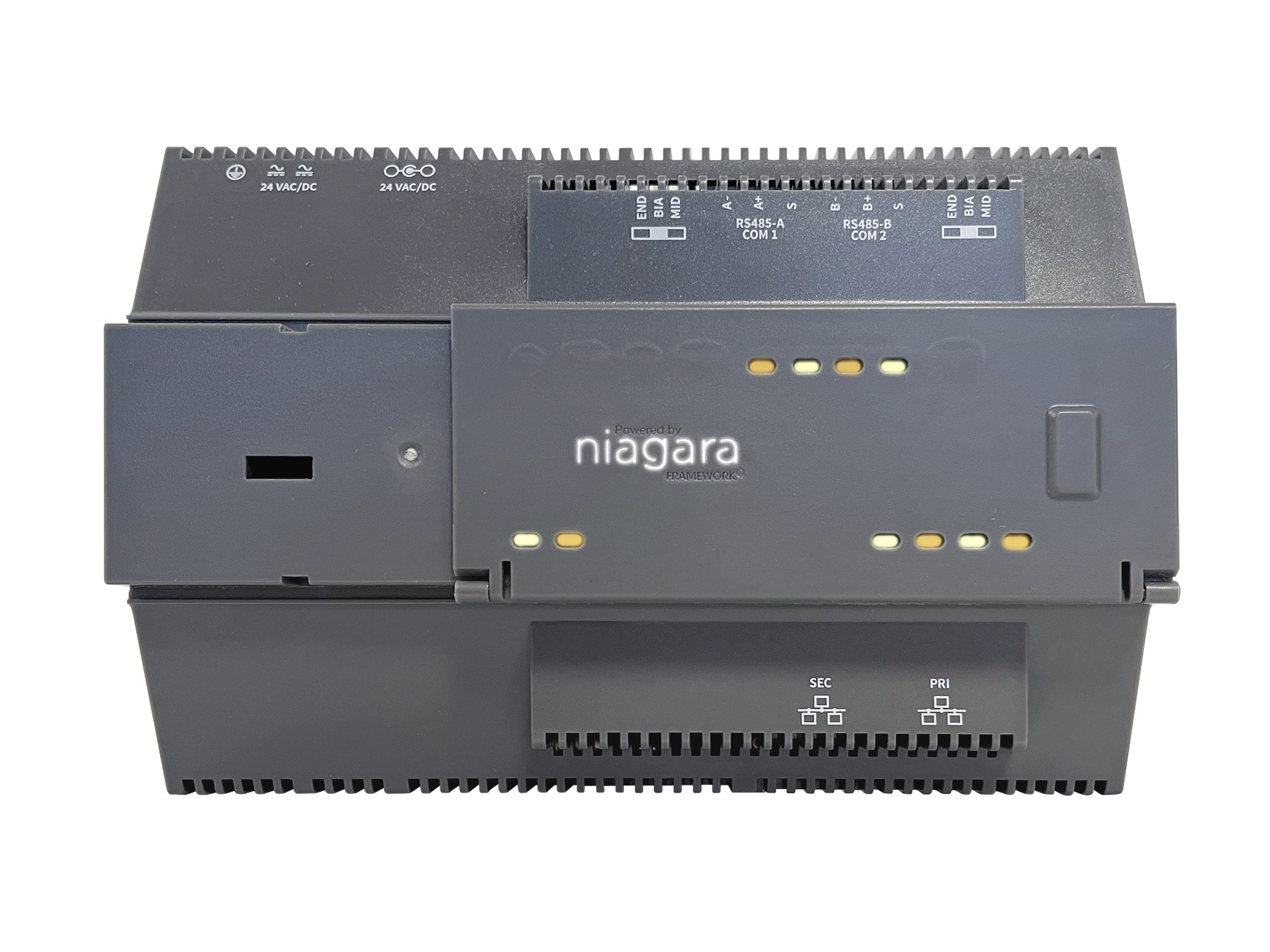

Introducing the Tridium JACE 9000, the latest Tridium flagship controller that surpasses the capabilities of the JACE 8000 platform. JACE 9000 seamlessly operates with Niagara 4.13 and above, positioning itself as a cutting-edge, compact IoT (Internet of Things) controller and server platform for the integration of diverse devices and sub-systems. With robust internet connectivity and web-serving capabilities, the JACE 9000 offers an integrated suite of features, including control, supervision, data logging, alarming, scheduling, and network management. Streamlining access, it delivers data and rich graphical displays to users via Ethernet or wireless LAN, as well as remote internet access.

Equipped with 2x Ethernet Ports, 2x RS485 Ports, and powered by 24V AC/DC, the JACE 9000 is a powerful solution. Licensing options start from 100 data points, with scalable choices ranging from 250 to 10,000+ data points. The controller's expandable design accommodates additional connectivity and software licenses, supporting global capacity licensing for seamless integration. Easily determine the required capacity from the start, with options including 100, 250, 500, 1250, 2500, 5000 & 10,000+ data points, and upgrade licenses as needed.

Enhancing versatility, the JACE 9000 is expandable with up to four option modules directly attached for additional communication ports, including LonWorks, RS232, and RS485 networks. Refer to the detailed data sheet for comprehensive information. The modular hardware design ensures a swift and straightforward installation, with both the controller and option modules designed for easy mounting on a 35mm wide DIN rail.

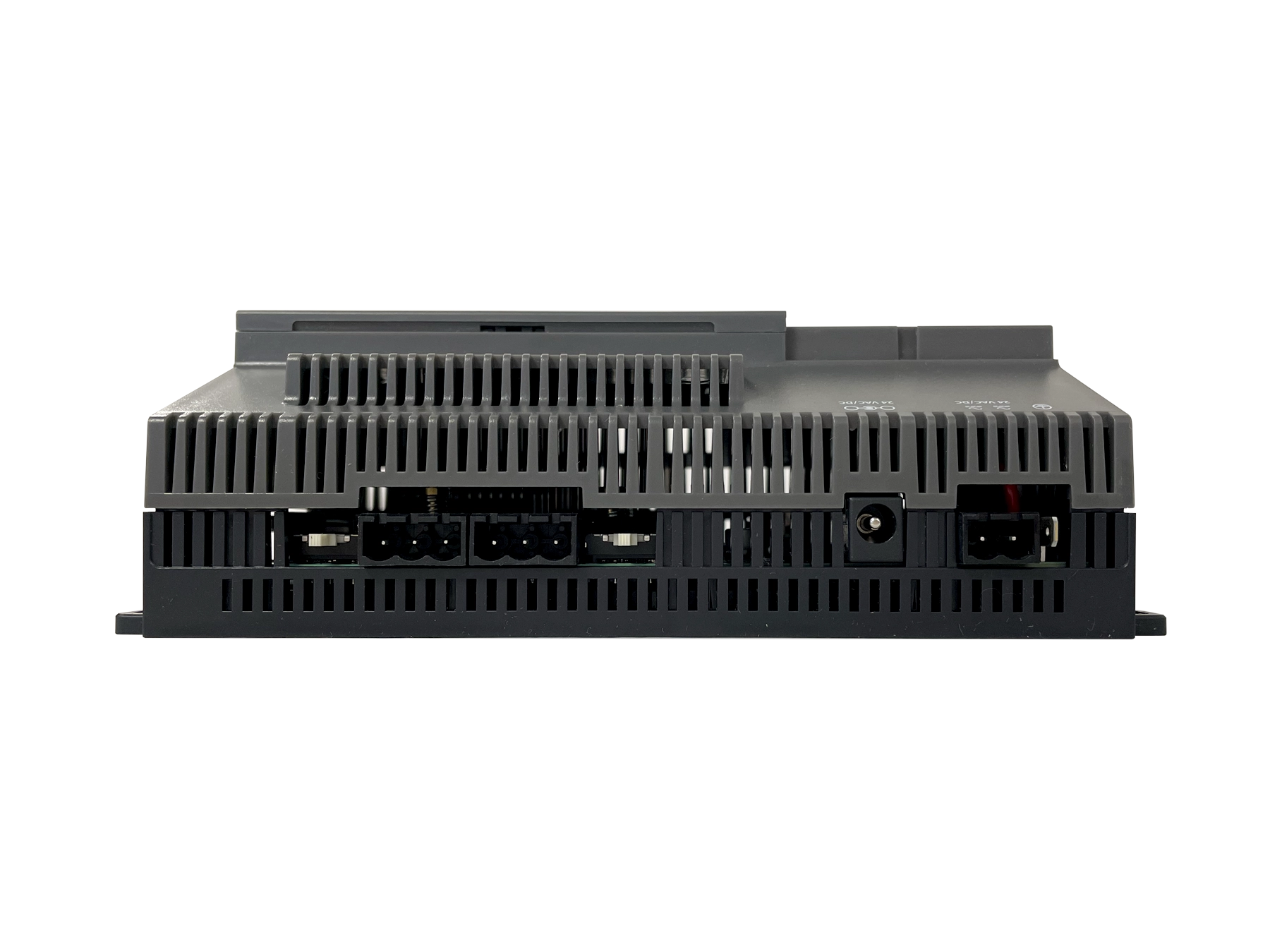

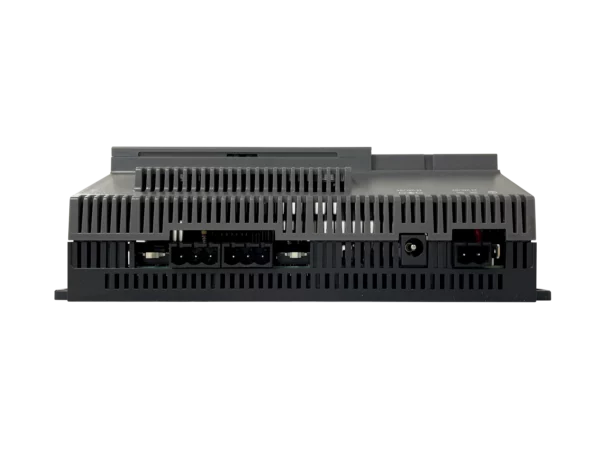

Powered by a 24V AC/DC standard global power supply, the JACE 9000 also offers opportunities for customer branding, allowing a rich choice of colours, materials, and finishes for distinctive OEM brand identification. Connectivity profiles include 2x on-board 10/100Mb Ethernet ports and 2x embedded isolated RS485 ports, with optional add-on modules available, such as LON FTT10, RS232, and 2x RS485. Elevate your building automation capabilities with the Tridium JACE 9000 – where innovation meets efficiency.

Features

  • Global capacity licensing and upgrade capability
  • Modular hardware design for fast and easy installation

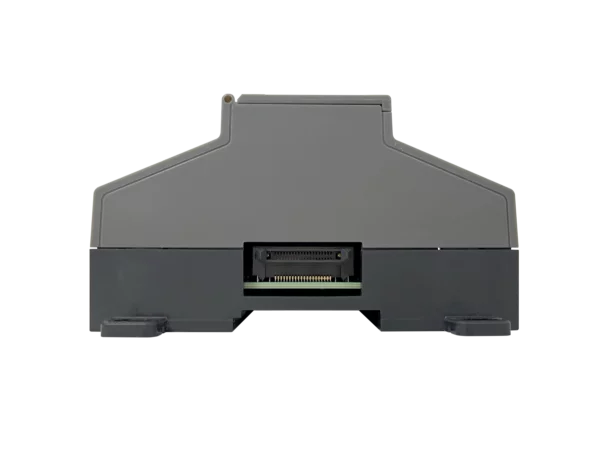

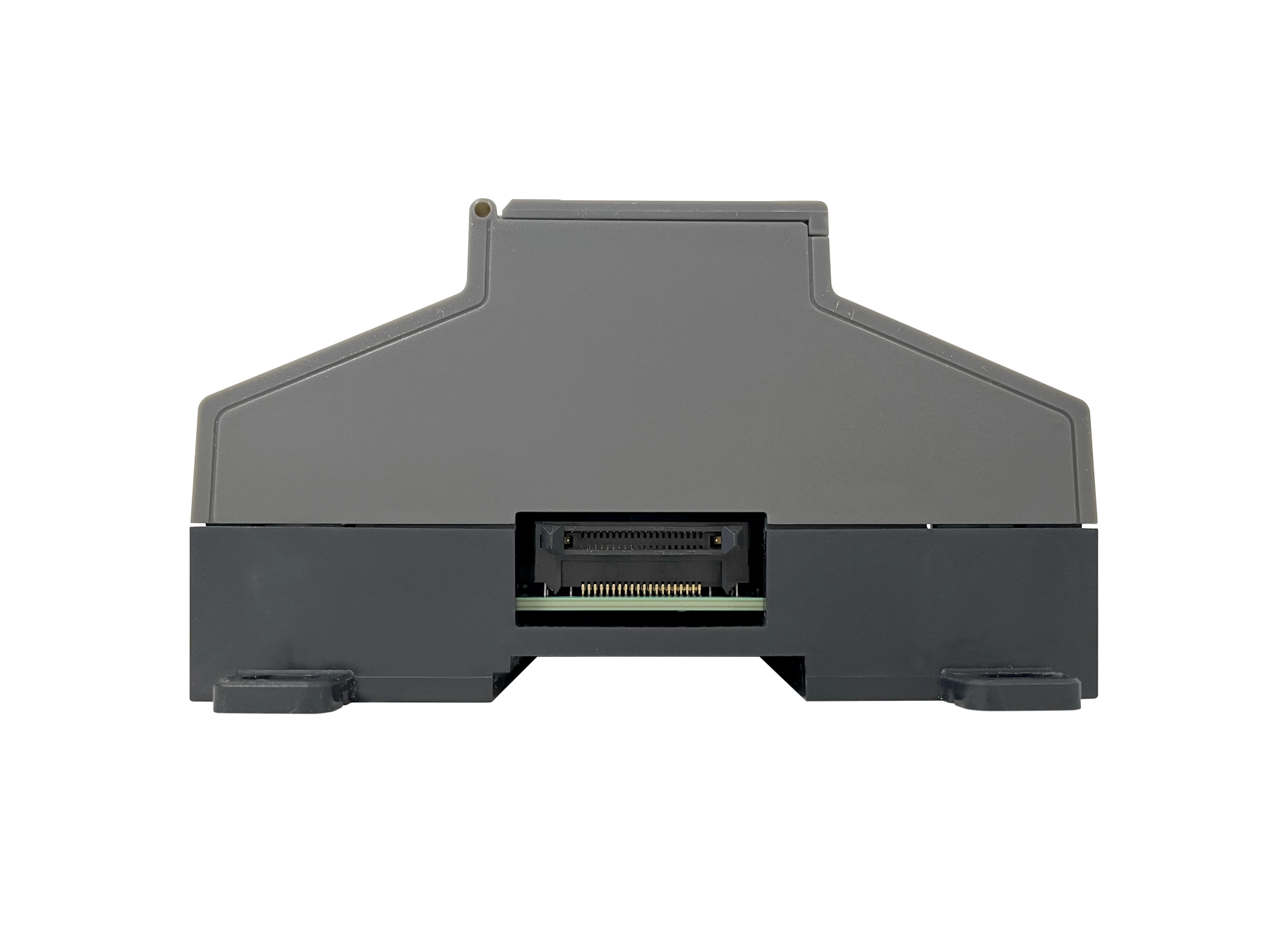

  • Expandable with up to four option modules
  • Role-based access control
  • Authorisation at the API level
  • Intuitive user interface
  • Encryption
    • all communications are encrypted by default
    • meets the FIPS 140-2 federal standard
    • supports TLS 1.3 sensitive data is encrypted on disk at rest
  • Connectivity profiles
    • native Wi-Fi capability (wap or client) a, b, g or n networks

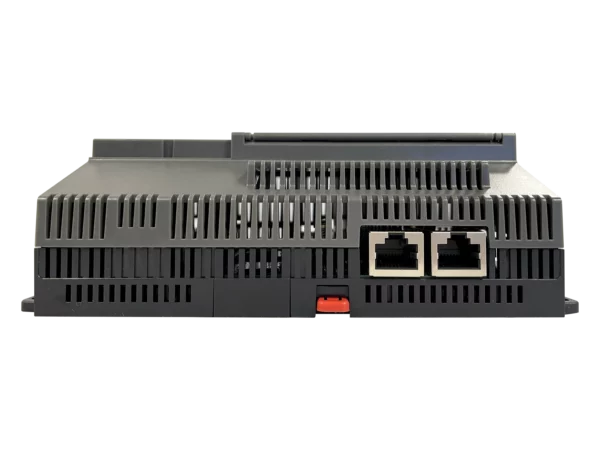

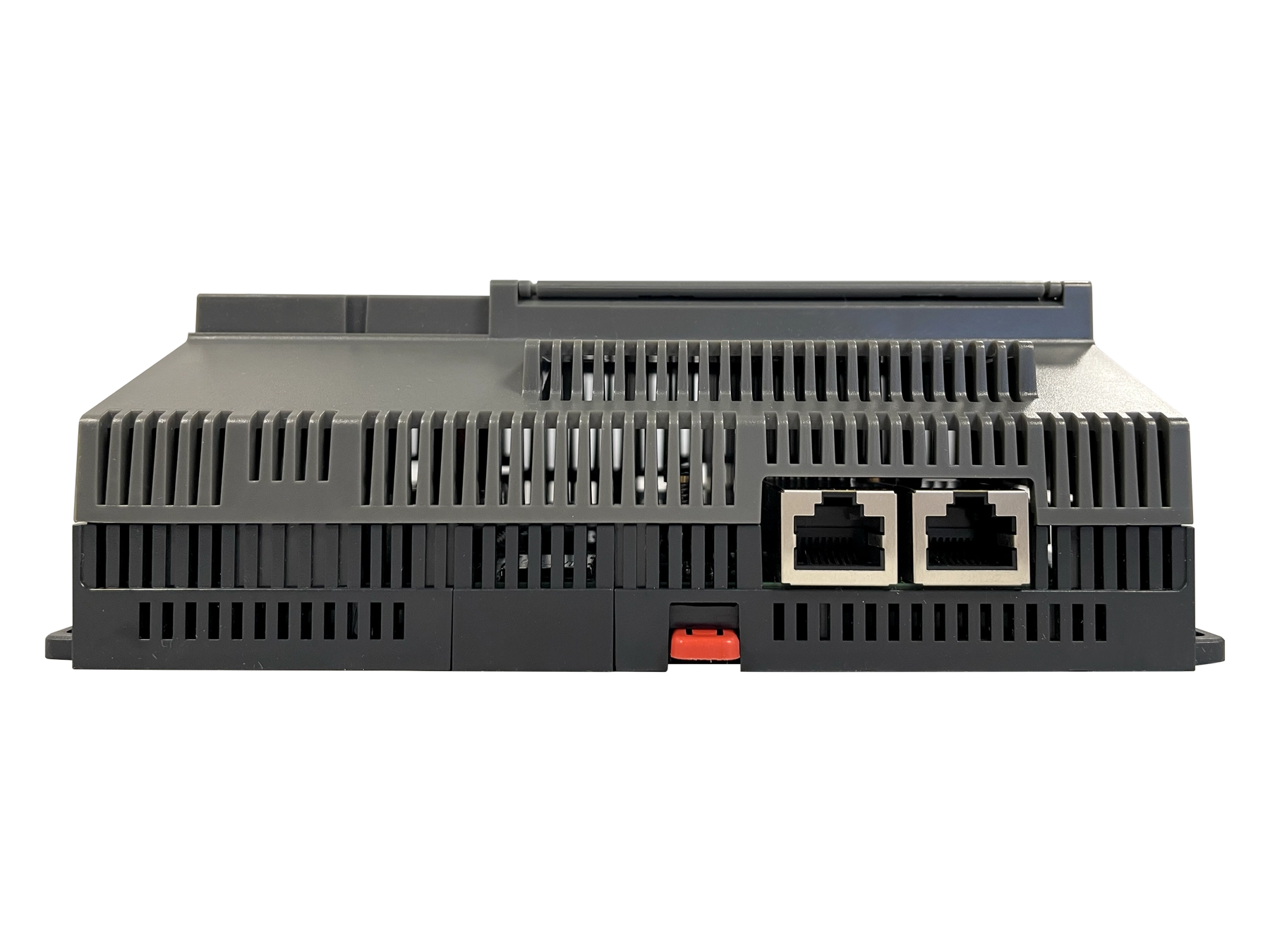

    • two 10/100/1000 mb ethernet ports
    • two isolated rs485 ports
    • optional lon ftt10, rs485 & rs232 expansion
  • 24V AC/DC— standard global power supply
  • Digitally signed code, validated at run-time. Assures that core framework code can’t be altered or manipulated.
  • Hardware security: Jace 9000 secure boot & HSM
  • Authentication. Pluggable schemes provide flexibility and defaults are the most secure
  • Identity infrastructure and PKI integration
  • Auditing of user activities
  • Security situational awareness
  • Common-sense user account management


Downloads

Datasheet   Leaflet   FAQ
