J800917IO34

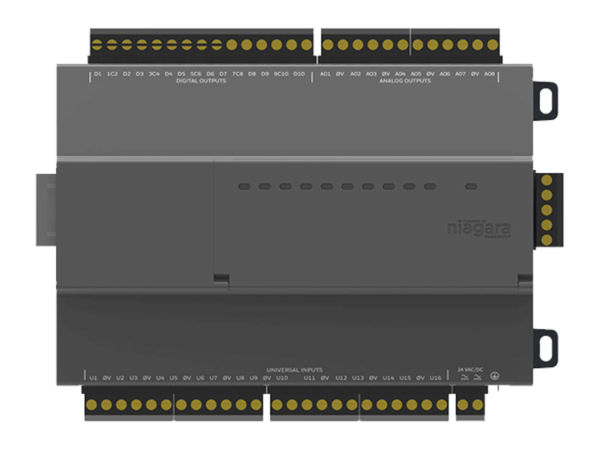

IO-R-34 ( NRIO module with 16 Universal Inputs, 10 Relay Outputs, 8 Analog Outputs)
£377.60
Out of stock
The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.
Get help buying, call 01942 732819

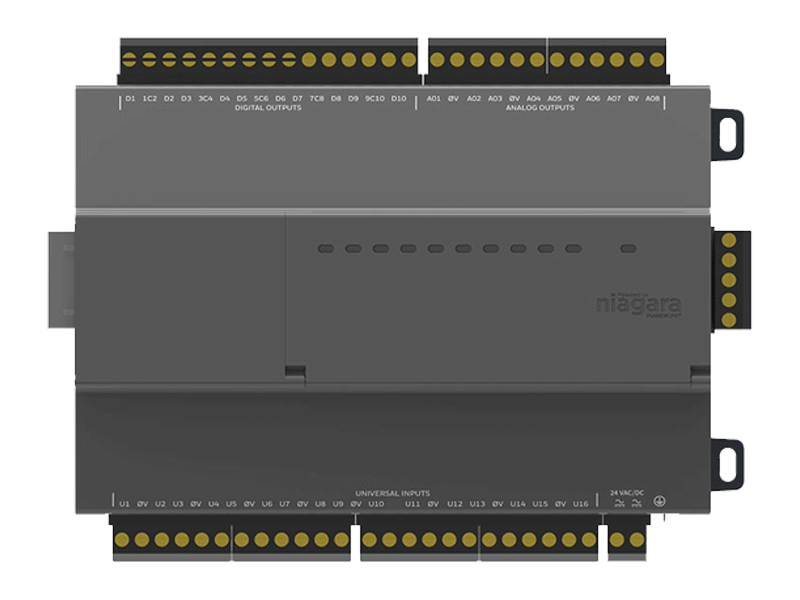

IO-R-34 ( NRIO module with 16 Universal Inputs, 10 Relay Outputs, 8 Analog Outputs)
IO-R-34 allows the JACE 8000 to interface directly with simple non-intelligent inputs and outputs remotely located up to 4,000 feet from the JACE. The connection is established via an industry-standard RS 485 multi-drop communications bus. Multiple IO R devices can be utilized on a single JACE, providing 250+ IO points on a single JACE.
- Ease of use: Single-tool programming inside the Niagara environment with live debugging.
- Enhanced capability: Ability to set hold time and default states for outputs based on application needs.
- Improved flexibility: Operates over an RS485 network and can be installed anywhere. Multiple modules can be combined so each JACE 8000 can command more than 250 points of IO.
- Minimal wiring labor: Quick three-step process when moving from NDIO to the JACE 8000.
Features
-
16 Universal inputs: Type 3 (10k) thermistors, 0-100K ohm
-
0-10VDC, 0-20 mA with external resistor
-
10 Relay outputs (Form A contacts, 24VAC @ .5 amp rated)
-
8 Analog outputs (0-10VDC)
-
Powered from a 24VAC/DC source
-
Can power up to 4 IO-R-16 modules
-
Connected to JACE 8000 remotely over a shielded RS485 bus
