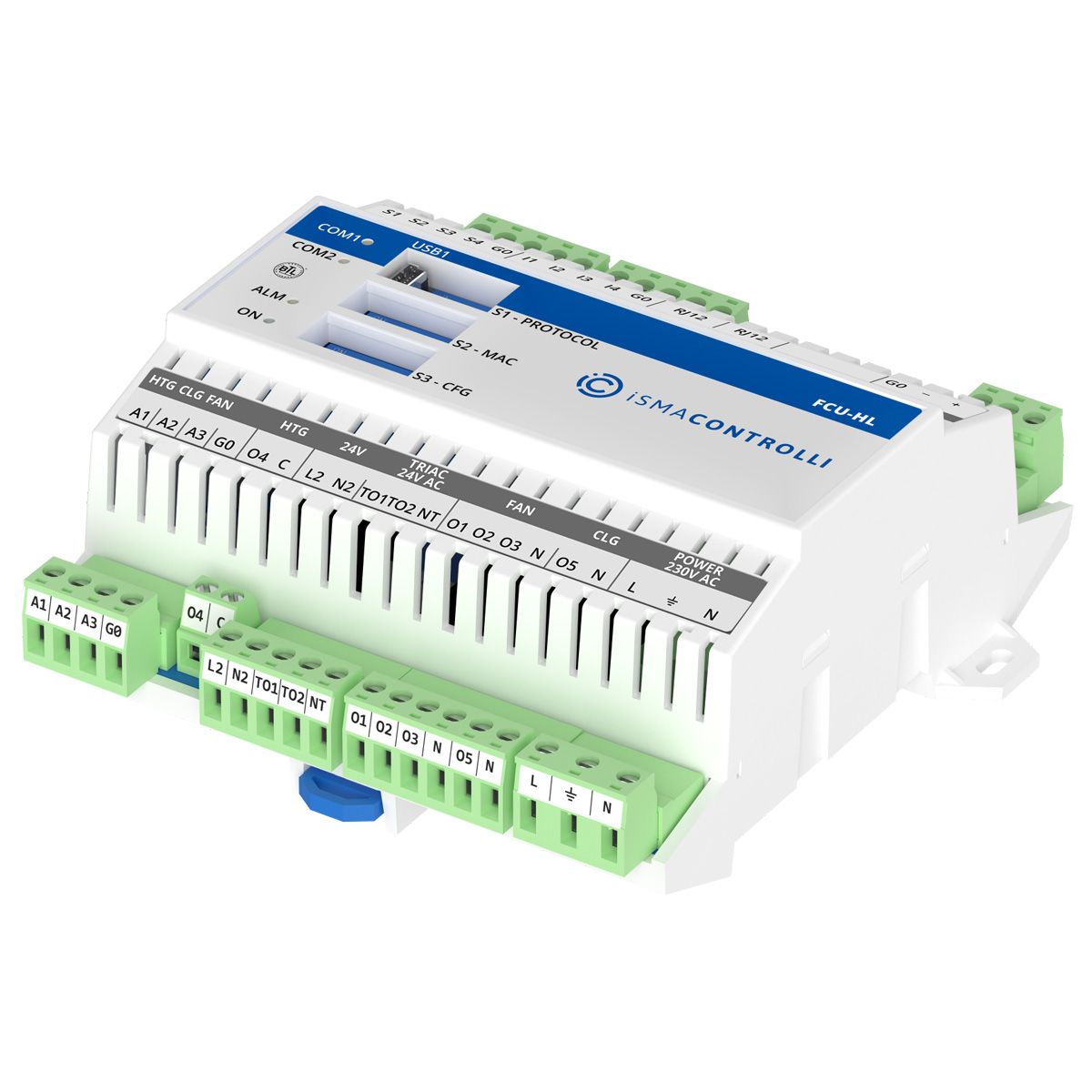

FCU-HL (BACnet MSTP / Modbus RS485)

Explore Pre-loaded Application for 256 Types of Fan Coil Units
To minimize time and simplify the commissioning process, the FCU controller is delivered with a  built-in application, which supports the most popular types of fan coil units. A dedicated DIP switch allows for adjusting parameters of the application. Additionally, in the BACnet protocol, the application has a built-in function that allows to automatically bind master and slave controllers in the groups.
Experience the Freedom of Control Offered by the Sedona Framework
FCU-HL is a configurable and freely programmable controller with Modbus RTU/ASCII and BACnet MS/TP protocols onboard. The possibility of creating a tailor-made application with the power and flexibility offered by the Sedona Framework makes the controller useful not only for fan coil control. Sedona is an open-source software environment designed to make it easy to build smart, networked, embedded devices, which are well-suited for implementing control applications.
Freely programmable controller with a modern programming tool and 18 onboard I/Os is suitable for most types of fan coil units and other comfort management applications.

4 Special Inputs
Take advantage of a special input with support for the most popular types of temperature sensors, ability to read voltage, resistance, current, and dry contact measurements, with a fast pulse counter saving up to 100 pulses per second directly to the EEPROM memory.

4 Digital Inputs
Dry contact inputs - made for monitoring. 100 Hz fast pulse counter with overriden function saves the real-time values to the non-volatile memory of the controller.

5 Digital Outputs
There are onboard: 3 digital outputs 6 A for fan control, 1 digital output 10 A for electric heater, and 1 digital output 6 A for cooling valve actuator.

3 Analog Outputs
0-10 V DC analog outputs dedicated for a heating actuator, cooling actuator, and fan speed control.

2 Triac Outputs
The FCU-HL controller is equipped with two triac outputs dedicated to heating and cooling of thermal valve actuators. Outputs can be connected to actuators with a 24 V AC power supply.
Triac outputs can work as typical binary outputs for binary temperature control or with PWM modulation.

Open Communication
The powerful FCU-HL controller is equipped with two RS485 interfaces with open protocols, BACnet MS/TP and Modbus RTU/ASCII. You can connect up to 128 devices on one bus.

Simplified Configuration and Commissioning Process
You can prepare your application with the use of a free of charge programming tool or configure the FCU-HL controller using our Quick Start-up manual and built-in DIP switches.

Features

Hardware Specification
ARM Cortex-M4 processor
2 RS485 interfaces
mini USB type B interface
Programmable DIP switches
DIP switches for configuration
Status LED indicators
DIN rail mounted
18 I/Os onboard

Inputs
4 Special Inputs (SI)
Temperature input: 10K3A1, 10K4A1, Carel 10K, 20K6A1
2.2K3A1, 3K3A1, 30K6A1, SIE1, TAC1, SAT1
Resistive input 0-1000 kΩ

Voltage input 0-10 V DC
Current input 0-20 mA
Dry contact input
Fast pulse counter up to 100 Hz saved in the EEPROM memory

4 Digital Inputs (DI)
Dry contact inputs
Fast pulse counter up to 100 Hz saved in the EEPROM memory

Outputs
5 Digital Outputs (DO)
3 digital outputs 6 A NO for fan control
1 digital output 10 A NO for electric heater and
1 digital output 6 A NO for cooling valve actuator

3 Analog Outputs (AO)
Output 0-10 V DC maximum load up to 20 mA
PWM: 0.01 Hz, 0.1 Hz, 1 Hz, 10 Hz, 100 Hz

2 Triac Outputs (TO)
0.5 A @ 24 V AC for heating and cooling actuators
PWM: 0.01 Hz, 0.1 Hz, 1 Hz, 10 Hz, 100 Hz

Communication
BACnet MS/TP
Modbus RTU/ASCII
Free software iSMA Tool & FCU Updater

Power Supply
230 V AC

Datasheet
