Product Overview

The eBMS/IO range of I/O modules are designed for use as local I/O within motor control cabinets or as remote I/O connected via TCP or RS485 Modbus.

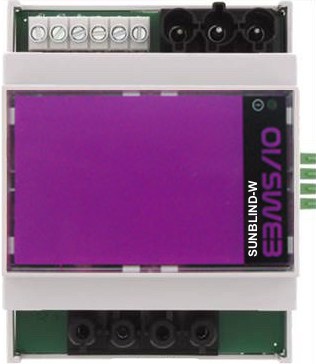

The eBMS/IO Sunblind module provides:

• 2 independent digital relay output channels, each rated at 250V AC / 16A, switching the connected supply voltage

• 2 digital inputs for local control of sun blinds

• The output function can be exchanged in the software

The IP20 rated module may be plugged together with other modules on standard TS35 DIN rail or direct mounting. The cascadable design allows power and 2-wire RS485 Modbus communications to pass through without any extra wiring.

Modbus address setting is via rotary switches, easily accessible underneath the top cover. A bi-colour LED indicates the communications status.

Connectivity

The Sunblind module includes one 2-wire RS485 port, supporting a Modbus communications network connection to the JACE® controller.
Modules can be networked via TCP, RS485, or mixed networking.

Engineering

Can be engineered via any system with a Modbus interface.
Palette files available for Tridium AX and N4.

Applications

BMS and monitoring
