The eBMS/IO range of I/O modules are designed for use as local I/O within motor control cabinets or as remote I/O connected via TCP or RS485 Modbus.

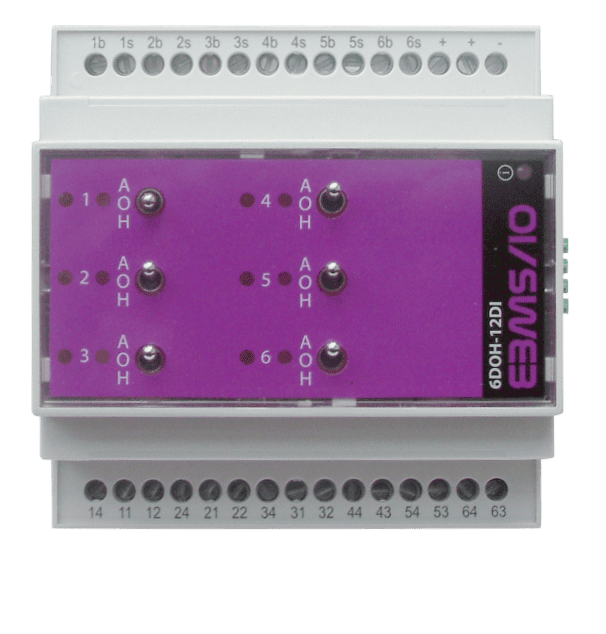

The eBMS/IO MULTI I/O module provides a mixture of:

• 4DI (Digital Inputs)

• 6DO (Digital Outputs)

• 6UI (Universal Inputs)

• 2AO (Analog Outputs)

The analogue outputs and 2 digital output channels include:

• Hand-auto override switches

• Setting potentiometers

Each output features a yellow LED, and each digital input includes a bi-colour LED indicating the current status of the connected device.

The IP20 rated module may be plugged together with other modules on standard TS35 DIN rail or direct mounting. The cascadable design allows power and 2-wire RS485 Modbus communications to connect through without any extra wiring.

Modbus address setting is done using rotary switches, which are easily accessible underneath the top cover. A bi-colour LED indicates communications status.

Connectivity

The Multi I/O module has one 2-wire RS485 port, supporting a Modbus communications network connection to the JACE® controller.
Modules can be networked via TCP, RS485, or mixed networking.

Engineering

Can be engineered via any system with a Modbus interface.
Palette files available for Tridium AX and N4.

Applications

Typical applications include building automation control systems and monitoring.
