Product Overview

The eBMS/IO range of I/O modules are designed for use as local I/O within motor control cabinets or as remote I/O connected via TCP or RS485 Modbus.

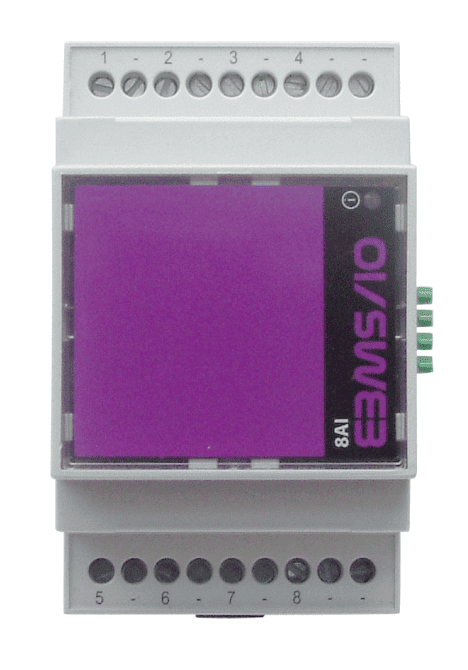

The eBMS/IO 8AI module supports 8 independent analogue inputs, which can be used with a wide variety of voltage, current, and resistive temperature detector (RTD) devices.

The IP20 rated module may be plugged together with other modules on standard TS35 DIN rail or direct mounting. Its cascadable design allows power and 2-wire RS485 Modbus communications to pass through without any extra wiring.

Modbus address setting is done via rotary switches, which are easily accessible underneath the top cover. A bi-colour LED indicates the communications status.

Connectivity

The 8AI module includes one 2-wire RS485 port supporting a Modbus communications network connection to the JACE® controller.
Modules can be networked via TCP, RS485, or mixed networking.

Engineering

Can be engineered via any system with a Modbus interface.
Palette files available for Tridium AX and N4.

Applications

Typical applications include building automation control systems and monitoring.
