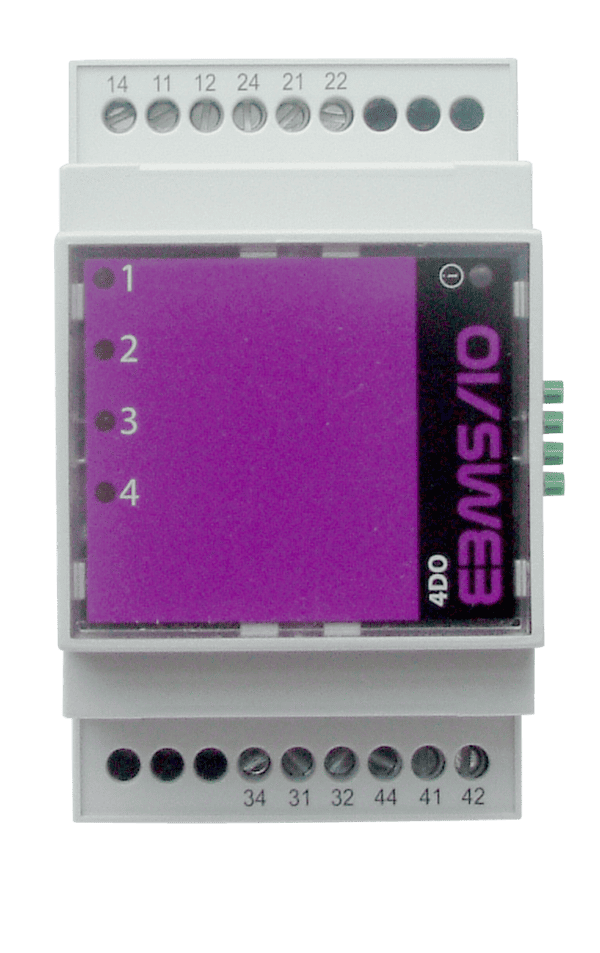

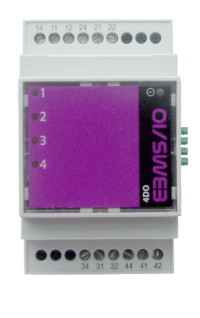

eBMS/IO 4DO

Product Overview

The eBMS/IO range of I/O modules are designed for use as local I/O within motor control cabinets or as remote I/O connected via TCP or RS485 Modbus.

The eBMS/IO 4DO module provides:

  • 4 independent digital relay output channels, each rated at 250V AC / 16A

  • Each output has a change-over contact configuration

  • Each output includes a yellow LED to indicate the current status of the connected device

The IP20 rated module may be plugged together with other modules on standard TS35 DIN rail or direct mounting. The cascadable design allows power and 2-wire RS485 Modbus communications to connect through without any extra wiring.

Modbus address setting is via rotary switches, easily accessible underneath the top cover. A bi-colour LED indicates the communications status.


Connectivity

The 4DO module includes one 2-wire RS485 port, supporting a Modbus communications network connection to the JACE® controller.
Modules can be networked via TCP, RS485, or mixed networking.


Engineering

Can be engineered via any system with a Modbus interface.
Palette files available for Tridium AX and N4.


Applications

BMS and monitoring

Features

  • 4 digital outputs with change over contacts
  • 16A resistive load with high inrush current
  • DIN rail or direct mounting
  • 24v ac or dc power operation
  • Supports RS485 2-wire Modbus Open Communication network
  • Failsafe outputs to predefined state on communications failure
  • Easy address setting using rotary switches
  • Bi-colour LED for module status information
  • Yellow LED status indication per output
