The eBMS/IO range of I/O modules are designed for use as local I/O within motor control cabinets or as remote I/O connected via RS485 Modbus.

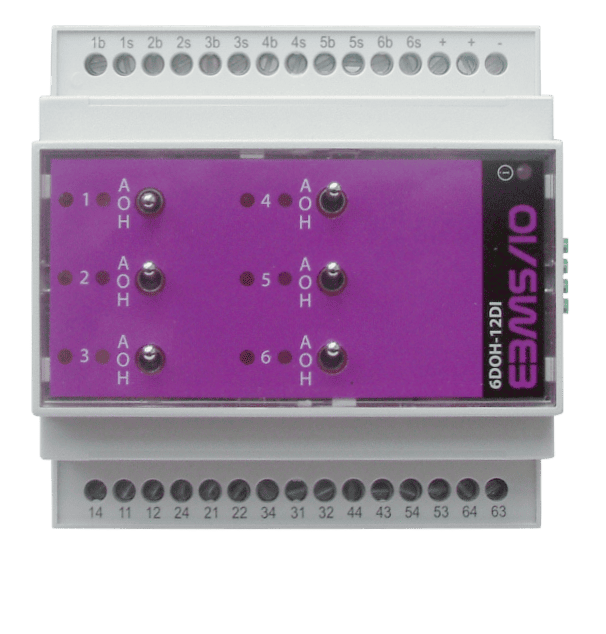

The eBMS/IO 6DOH-12DI module provides:

• 6 independent digital relay output channels rated at 250V AC / 8A, each with hand-off-auto override switches

• 12 digital input channels, arranged in pairs, used for contactor run and alarm status monitoring

Each output has a yellow LED, and each input pair features a bi-colour LED to indicate the current status of connected devices.

The IP20 rated module may be plugged together with other modules on standard TS35 DIN rail or direct mounting. Its cascadable design allows power and 2-wire RS485 Modbus communications to connect through without any extra wiring.

Modbus address setting is performed using rotary switches, which are easily accessible underneath the top cover. A bi-colour LED indicates communications status.

Connectivity

The 6DOH-12DI module includes one 2-wire RS485 port supporting a Modbus communications network connection to the JACE® controller.
Modules can be networked via TCP, RS485, or mixed networking.

Engineering

Can be engineered via any system with a Modbus interface.
Palette files available for Tridium AX and N4.

Applications

BMS and monitoring
