Product Overview

The eBMS/IO range of I/O modules are designed for use as local I/O within motor control cabinets or as remote I/O connected via TCP or RS485 Modbus.

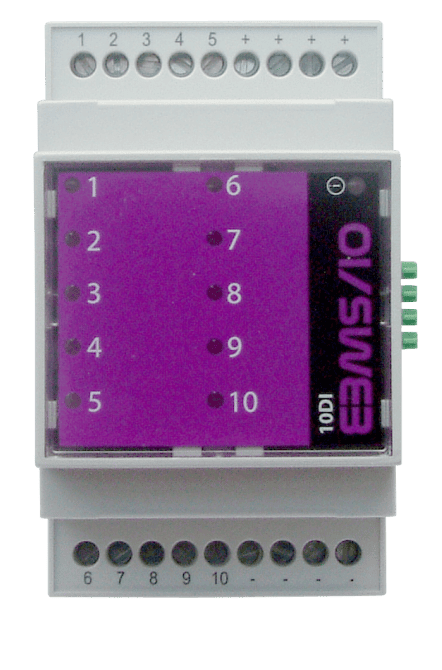

The eBMS/IO 10DI module supports 10 independent digital inputs with input voltages up to 24V AC or DC. The module also provides a voltage source that can be used for applications requiring volt-free contacts.

Each digital input has a bi-colour LED indicating the current status of the connected device.

The IP20 rated module may be plugged together with other modules on standard TS35 DIN rail or direct mounting. The cascadable design allows power and 2-wire RS485 Modbus communications to connect through without any extra wiring.

Modbus address setting is done via rotary switches, easily accessible underneath the top cover. A bi-colour LED indicates the communications status.

Connectivity

The 10DI module includes one 2-wire RS485 port supporting a Modbus communications network connection to the JACE® controller.
Modules can be networked via TCP, RS485, or mixed networking.

Engineering

Can be engineered via any system with a Modbus interface.
Palette files available for Tridium AX and N4.
