iSMA-B-4TO-H-IP

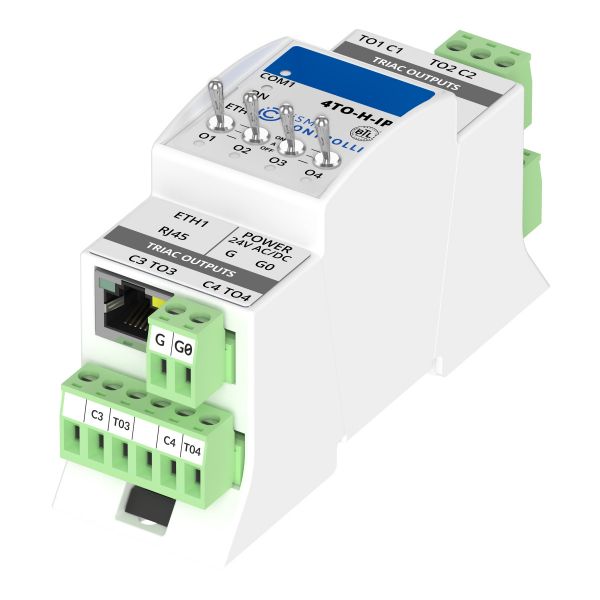

4TO-H IP (BACnet IP / Modbus TCP)

£197.00

The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.

Get help buying, call 01942 732819

4TO-H IP (BACnet IP / Modbus TCP)

4TO-H IP (BACnet IP / Modbus TCP)

Multiprotocol I/O Module in a Compact Size
Powerful I/O module that works as a remote I/O over IP with open protocols, BACnet IP and Modbus TCP/IP. A compact size and ease of installation allow the module to be fitted even into limited space installations.

4 Triac Outputs
Silent control of AC current with four solid-state outputs with PWM mode and up to 0.5 A load.

Manual Override Switches
Each output can be manually overridden using a dedicated hand operating switch.

Modbus TCP/IP to Modbus RTU/ASCII Gateway
Built-in Modbus gateway on the COM1 port enables integration of up to 128 Modbus slave devices to the IP layer.

Simplified Configuration and Commissioning Process
The module allows for seamless configuration over BACnet, Modbus, built-in web server or dedicated free of charge tool. The ability to be powered from a USB port facilitates local testing and a straightforward updating process.

Features

Hardware Specification
Ethernet interface
RS485 interface
mini USB type B interface
Status LED indicators
DIN rail mounted

Outputs
4 Triac Outputs (TO)
0.5 A @ 24 V AC, 0.5 A @ 230 V AC
Continuous load per channel: 0.5 A (1.5 A peak 30 s)
Switching voltage: 20 to 250 V AC

Communication
BACnet IP
Modbus TCP/IP
Modbus TCP/IP to Modbus RTU/ASCII gateway
Free software iSMA Configurator
Built-in web server
Dedicated Niagara Framework modules

Power Supply
24 V DC ± 20%
24 V AC ± 20%
