SF196UO

196 UO Card – Direct replacement for 16 universal output card

£640.70

The price shown is excluding VAT. If VAT is applicable, it will be calculated at checkout based on the shipment address.

Get help buying, call 01942 732819

196 UI Card - Direct Replacement for 16 Universal Input Card

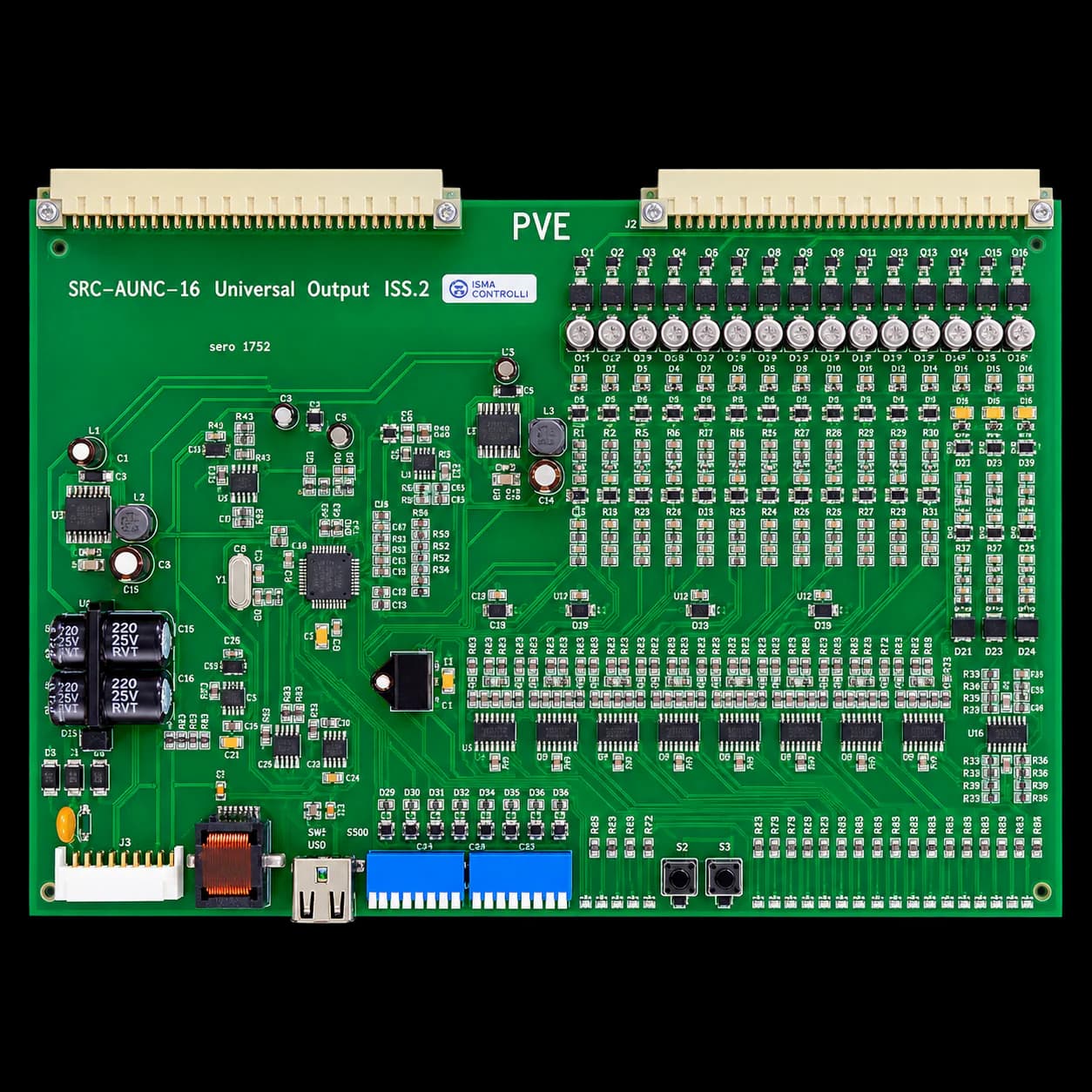

196 UO Card – Direct replacement for 16 universal output card

The 16 channel output is designed to fit directly into existing Satchwell BAS 2000, 2800 and Sigma rack type control enclosures (known as UNC 96 controllers) and hence allow the existing analogue and digital outputs to be driven by a modern, web based master controller over a Modbus RS 485 network. It incorporates capacitors to allow it to drive the existing Satchwell latching relay output modules.

The card provides 16 outputs, which can be configured as voltage outputs in the range 0 – 10V, or “latching relay” digital outputs. Four of the outputs can be configured for current-control, over the range 0 – 20mA. The outputs are numbered 1 to 16, with outputs 13 – 16 having the currentcontrol capability.
The card is communicated to by Modbus over a two-wire RS-485 network. The data format is 8bit RTU, with a choice of address, baud-rates and message formats configured by DIP switches (See Section 1.3). A software set-up tool is also available for commissioning the cards via a supervisor port in the absence of the master controller and Modbus network.

Features

  • Designed to fit directly into existing Satchwell BAS 2000, 2800, and Sigma rack-type control enclosures (UNC 96 controllers).
  • Enables existing analogue and digital outputs to be controlled by a modern, web-based master controller over a Modbus RS 485 network
  • Incorporates capacitors to drive existing Satchwell latching relay output modules
  • Provides 16 outputs
  • Outputs can be configured as voltage outputs in the range of 0 – 10V or “latching relay” digital outputs
  • Four of the outputs can be configured for current control, ranging from 0 – 20mA
  • Outputs are numbered 1 to 16, with outputs 13 – 16 having current-control capability
  • Communicated to by Modbus over a two-wire RS-485 network
  • The data format is 8-bit RTU
  • Configuration options including address, baud rates, and message formats are set via DIP switches
  • Software set-up tool available for commissioning the cards via a supervisor port in the absence of the master controller and Modbus network
